Sucker Rod

sucker rod is a long, slender rod used in the oil and gas industry, typically 25–30 ft long (5/8″–1-3/4″ OD), primarily in pumping systems for extracting oil from wells. It connects the surface pumping unit to the downhole pump, transferring the mechanical energy needed to lift the oil to the surface. Sucker rods are typically made of steel and are designed to withstand the harsh conditions of the well environment, including high pressures and corrosive fluids.

In service, the rod string operates under cyclic tensile loading with stress concentration at upset ends and threaded connections. Most premature failures trace back to a small set of controllable variables—grade selection for load and corrosion, connection consistency, and surface protection—because a single weak point can stop the well and trigger a full work-over cycle.

Sucker rod in API 11B for sale

Octal has high strength API 11B sucker rod for sale in Grade C, K, D, KD, HL, HY. Material available in alloy steel AISI 4130M, AISI 4138M, AISI 4330M, AISI 4142M, AISI 8630, with high strength and anti-torsion performances. API 11B specification includes the technical requirements for Sucker Rod, Pony Rod, Drive Rod, Polished Rod, Sinker Bar.

Typical deliverables include rods and matching couplings by size, protective thread caps, clear marking, and lot-based documentation that links each shipment to its Material Test Report (MTR). For procurement releases, the key is alignment between grade/material, thread form, coupling type, and inspection records so string assembly and acceptance can be closed without rework.

Sucker Rod Specifications / Common Features

Construction

Made of high-quality carbon or alloy steel to handle strong pulling and pushing forces in drilling and production. Available in different grades and sizes.

Construction choices are driven by three realities underground: high-cycle fatigue, corrosive well fluids (H2S/CO2/chlorides), and side loading in deviated wells. Steel sucker rods remain the API 11B baseline for most rod-pumped wells because the fatigue performance of upset ends and connections can be controlled and verified lot-by-lot through mechanical testing and process records.

Length and Diameter

Typically 25–30 feet (7.6–9.1 m) long. Diameters commonly range from 5/8 inch to 1-1/4 inches (15.9–31.8 mm).

Standardization matters in purchasing: mixing OD steps and length sets changes rod-string weight, stretch, and connection count, which directly affects load distribution and fatigue accumulation. Pony rods (2–10 ft) are commonly used to fine-tune string length and to manage localized wear zones without replacing full-length rods.

Types

Conventional sucker rod (solid)
Hollow sucker rod (has a hollow center for fluid flow)
Continuous sucker rod (one long piece with no threaded joints)

Type selection is usually tied to the dominant failure driver. Continuous sucker rods reduce the number of threaded joints, which lowers joint-related corrosion and fatigue initiation points. Centralized/guide solutions are often specified where deviation-driven wear is the limiting factor, while anti-twist designs are used when torsional effects and connection back-off risk become material.

Function

Transmit mechanical power from the surface to downhole pumping equipment.

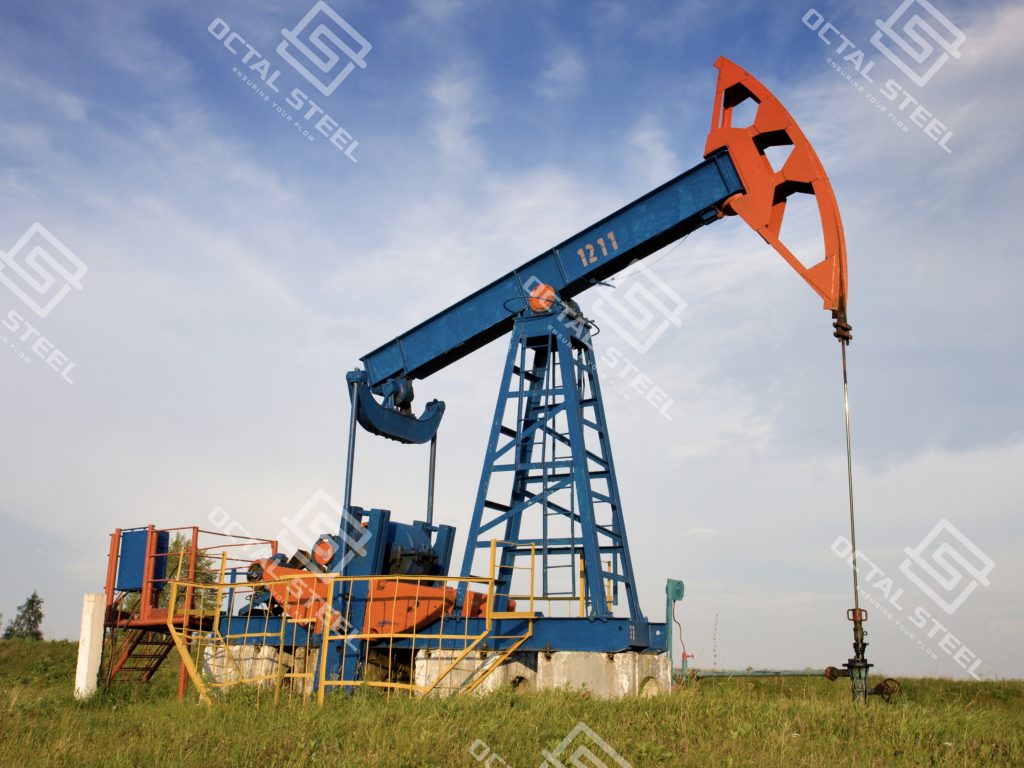

Pumping Mechanism: In a typical setup, the sucker rod is attached to a pumping unit, such as a pumpjack, which reciprocates the rods up and down to create the necessary pumping action. This action helps lift the oil or gas to the surface.

From a performance standpoint, the rod string is a mechanical transmission line: load reversals, string weight, and frictional drag combine into peak stress at connections and upset transitions. That is why connection geometry, thread finish, and consistent make-up behavior are treated as acceptance-critical items, not just machining details.

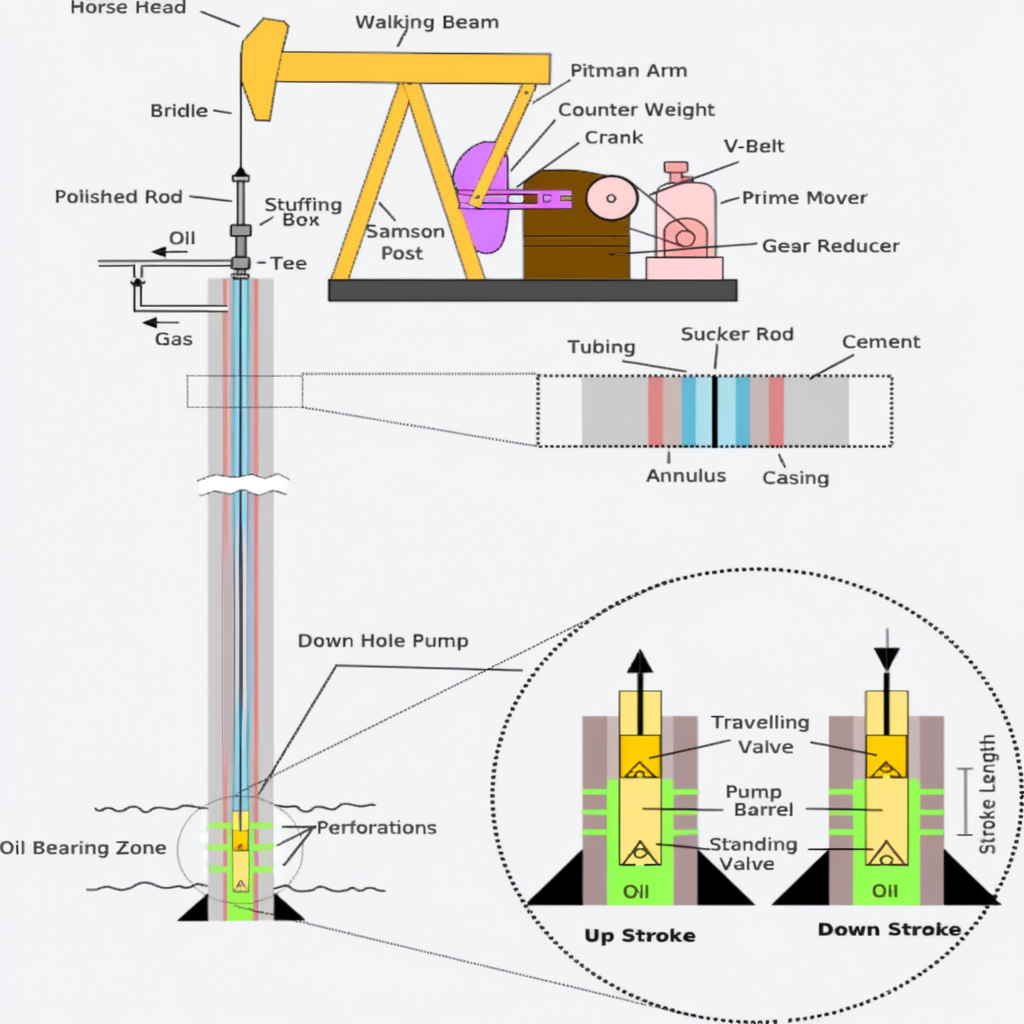

Pumping System Basic Operation Flow as below

• System Overview: A crank and connecting rod drive the sucker rod to move up and down in deep wells.
• Operating Mechanism:
  • Downstroke: Creates negative pressure.
  • Upstroke: Lifts oil to the surface through production tubing.

Technical Characteristics:

• Operating Load: 15-45 kN
• Temperature Range: -40°C to 150°C
• Suitable for: Conventional oil fields, offshore platforms, high water cut wells
• Key Advantages: High strength, corrosion resistance, precise connections

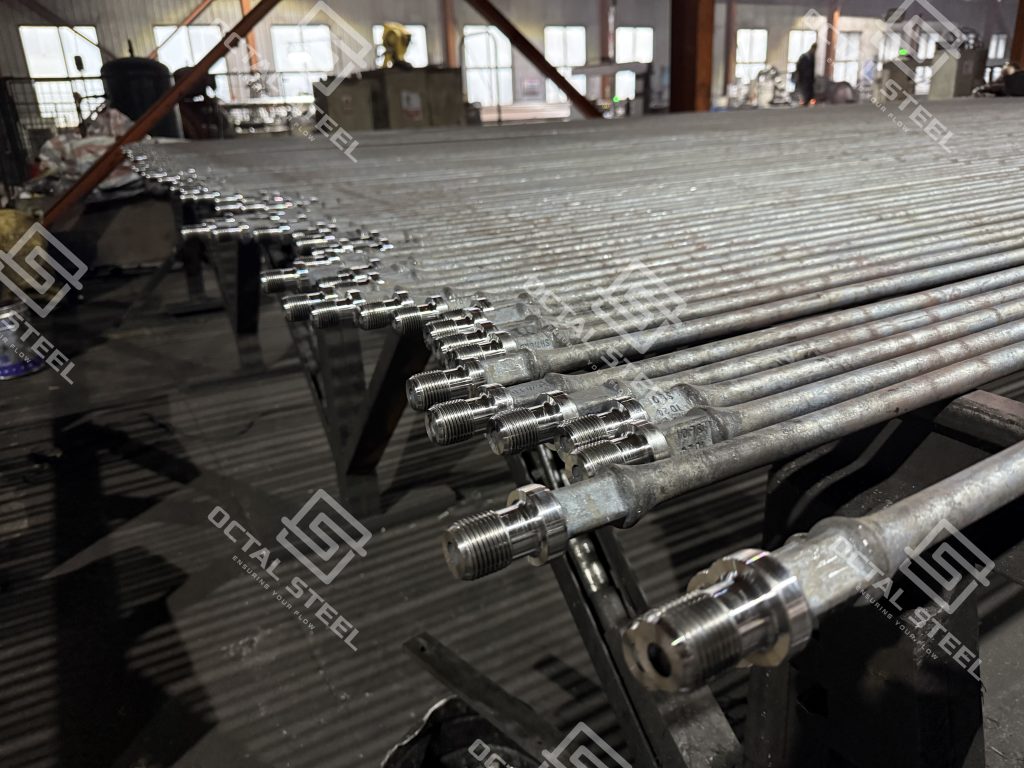

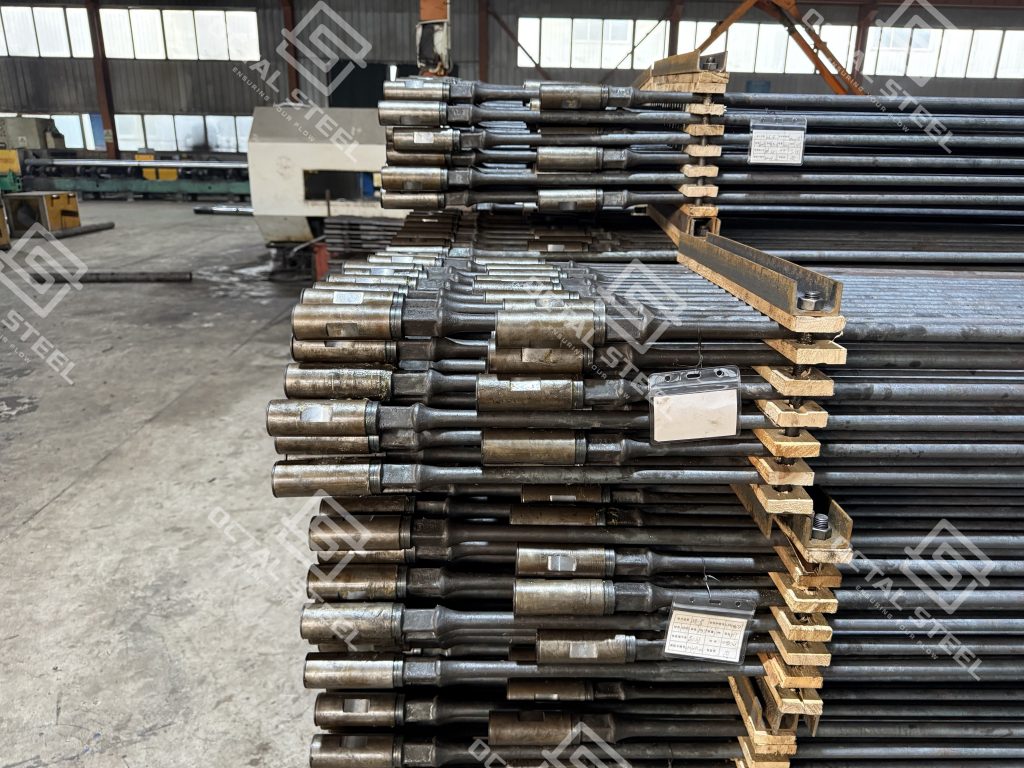

Threaded Connections

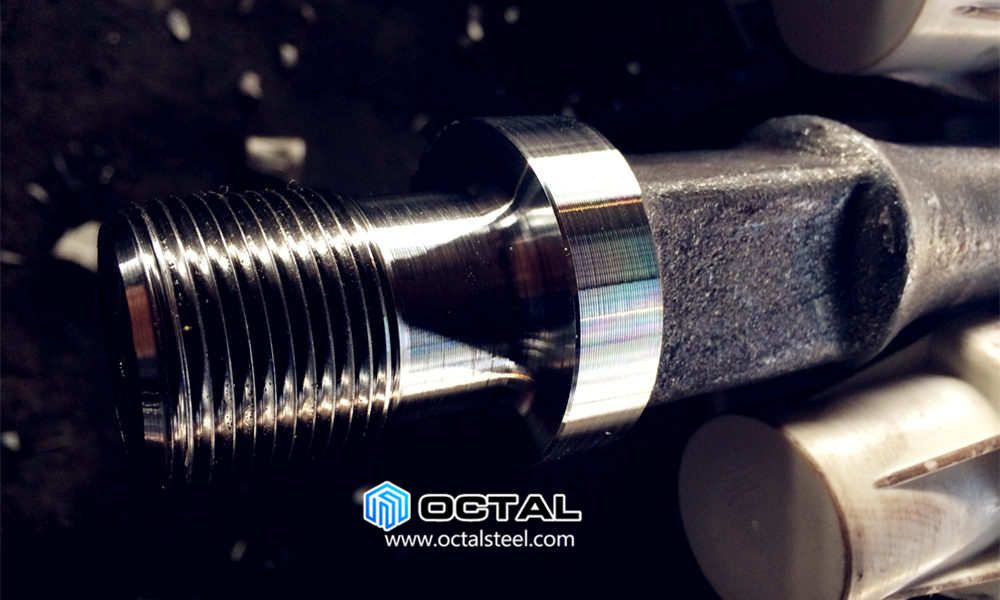

Sucker rods have threaded connections on each end, allowing them to be joined together to form a continuous string. The connections are usually made using a coupling or a rod clamp, ensuring a secure and leak-free connection.

Connection reliability depends on thread form accuracy, surface finish, and gauge compliance across both rods and couplings. In field runs, most connection-related issues show up as inconsistent make-up, accelerated coupling wear, or fatigue cracking initiated at the first engaged thread—especially when corrosion and cyclic loads act together.As a sucker rod manufacturer, Octal verifies thread form with gauge-based checks to keep make-up behavior consistent across lots.

Connection Options (Couplings & Threads)

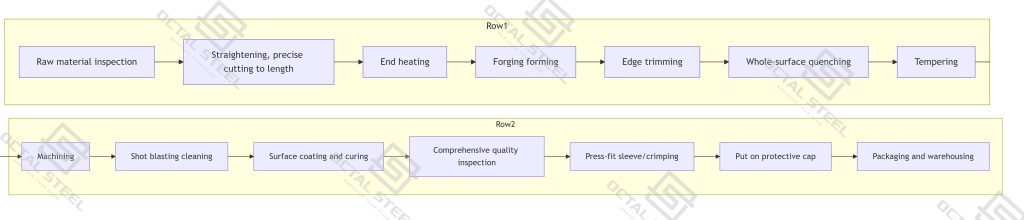

Sucker Rod Manufacturing Processes

For a sucker rod manufacturer, the practical differentiator is process consistency that can be proven by records: raw bar verification by heat, controlled upsetting for sound flow lines at the rod end, quench-and-temper stability by lot, CNC thread accuracy with gauge control, and final inspection that ties dimensions, NDT scope, and mechanical results back to a traceable MTR.

• Raw material inspection
• Straightening, precise cutting to length
• End heating → forging forming → edge trimming
• Whole-surface quenching → tempering
• Machining (turning/threading/milling with square corners)
• Shot blasting cleaning
• Surface coating and curing
• Comprehensive quality inspection (dimensions, NDT, performance)
• Press-fit sleeve/crimping

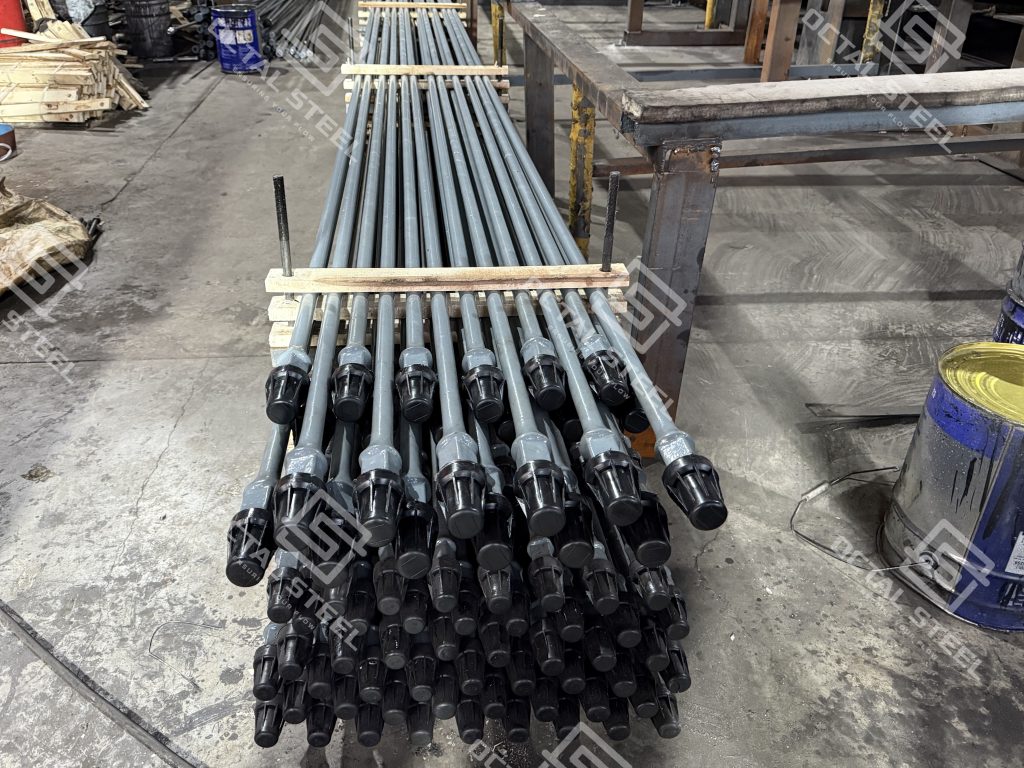

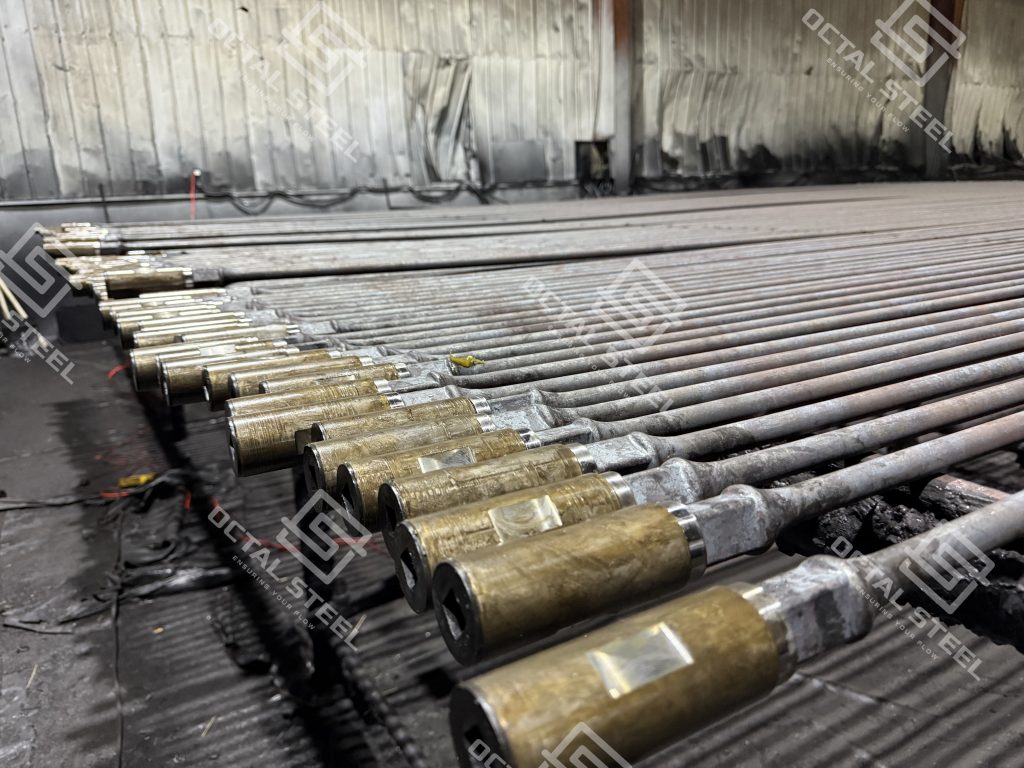

• Put on protective cap
• Packaging and warehousing

Key processes Forging, Heat Treatment, Threading(/h2)

Forging Forming

• Purpose: To create an extremely strong, defect-free end on the sucker rod (for connecting to other rods and couplings).

• Process: The end of the precisely cut rod is locally heated to a forging temperature (approx. 1200°C) in an induction heater. It is then placed into a die and upset and formed under immense pressure, creating a shoulder larger in diameter than the rod body.

• The metallographic structure and flow lines formed during hot forging directly determine the fatigue strength and connection reliability. If improperly executed, the process can easily lead to defects such as cracking, inclusions, and excessive stretching.Identification markings must be clear and associated with the Material Test Report (MTR) and batch number, ensuring complete traceability upon product delivery.

• Why it’s Important:

⒈High Strength: The forging process refines the grain structure and makes it flow continuously along the shape of the part. This eliminates defects like porosity, significantly increasing the fatigue strength and load-bearing capacity of the upset end.
⒉Reliability: This is one of the most critical steps to ensure the rod does not fail under the repeated tensile loading cycles it endures downhole.
⒊Inspection focus: upset geometry consistency, surface quality at transition, and evidence of defect control in the lot inspection record.
⒋Acceptance relevance: upset-end integrity is the dominant driver of fatigue life because it sees the highest cyclic stress concentration during operation.

CNC Threading

Purpose: To machine the threaded sections and rod body to very high precision.

• Process: A Computer Numerical Control (CNC) lathe is used to precisely cut the forged end according to a programmed blueprint. This creates the high-precision connection threads (e.g., API Modified Square Thread) to exact standards.

• Why it’s Important:

⒈Precision & Consistency: CNC technology ensures every rod’s threads have consistent dimensions, form, and pitch. This is essential for creating tight, secure connections between rods and preventing downhole failures.
⒉High Efficiency: Automated machining is stable and efficient, ideal for large-scale production.
⒊Surface Quality: It produces an excellent surface finish, reducing stress concentration points and extending fatigue life.
⒋Gauge compliance: thread form and pitch verification reduces mismatched make-up behavior between rods and couplings across different lots.
⒌Failure prevention: consistent thread root finish and controlled surface condition reduce crack initiation risk under combined load and corrosion.

Heat Treatment

Purpose:Achieve design-specified mechanical properties (strength, toughness, fatigue resistance) through heat treatment techniques such as quenching, tempering (or normalizing, annealing, quenching and tempering).

• Process: Normalization → Quenching (heating to austenitic temperature and rapid cooling) → Tempering (heat at specified temperature to reduce brittleness and adjust hardness)

• Critical Control Parameters：
⒈ Heating temperature
⒉ Holding time
⒊ Cooling medium
⒋ Tempering temperature and duration
⒌ Heating and cooling rates

• Why it’s Critical:
⒈ Creates Core Properties: Quenching makes the rod extremely hard and strong, while tempering reduces brittleness and adds toughness.
⒉ Ensures Reliability: This process (called quenching and tempering) is what enables the sucker rod to withstand millions of repetitive stress cycles underground without stretching or breaking
⒊ Lot consistency: mechanical properties are evaluated as a distribution by heat/lot, not as a single data point, because mixed hardness/strength widens fatigue scatter in the string.
⒋ Documentation: heat-treatment traceability (cycle identification and lot records) supports acceptance when mechanical values are verified against API 11B requirements.

 Common Sucker Rod Problems and Root Causes

Failure Mode Matrix

Corrosion-related failures

• Often associated with CO2/H2S service, high-chloride produced water, and localized crevice conditions at couplings and upset transitions. Typical outcomes include section loss, pitting, and crack initiation under combined stress and corrosion.

Fatigue failure

• Driven by high-cycle tensile loading and stress concentration at connections. Fatigue cracks commonly initiate at upset transitions or the first engaged thread when make-up consistency and surface finish are not controlled.

Mechanical damage

• Handling impacts and downhole tool contact can create small surface defects that become crack starters under cyclic load. Damage is most critical at upset ends, shoulders, and thread roots.

Wear (rod-on-tubing / coupling wear)

• Deviated wells and high friction zones promote accelerated wear, often first visible on couplings and localized rod sections where side load is highest.

Deviation and bending effects

• Side loading in deviated wells increases frictional drag and bending stress, amplifying both wear and fatigue accumulation, especially when combined with corrosive fluids.

Sucker Rod material chemical and strength

Materials

• Sucker rods are made from carbon steel or alloy steel.
• Common alloy steels include: AISI 4130M, 4138M, 4330M, 4142M, 8630M, and related ANSI 41XX grades (e.g., 4138M, 4330M, 4142M).
• Each grade has a specific chemical composition and mechanical properties (tensile strength, yield strength, hardness, toughness, etc.).
• Selection depends on needed strength and service conditions.

Sucker Rods in API 11B Standard Specification

Please note above values are for references, in case specific order, manufacturer maintain the reservation to modify it.

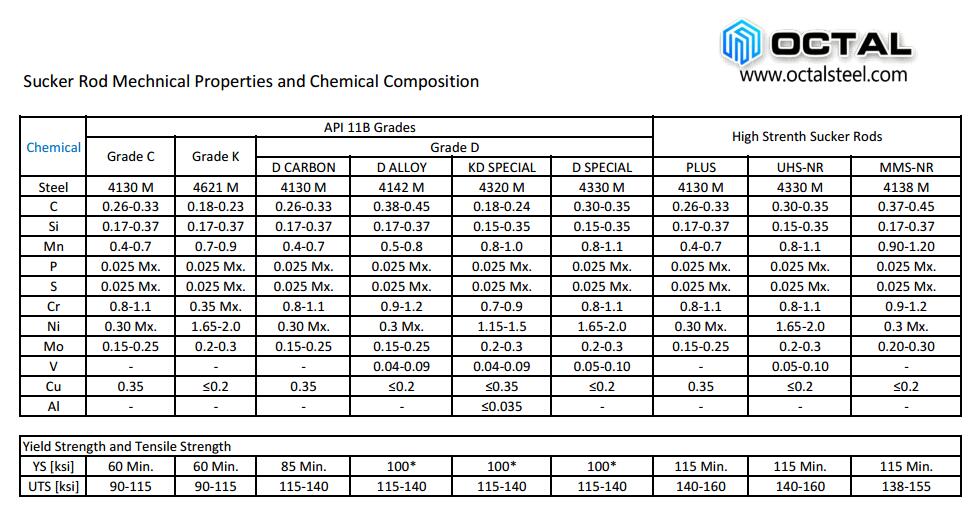

API 11B sucker rod grades in C, K, D, mechanical properties as below:
a. Grade C sucker rod minimum and maximum tensile strengths of 90,000 and 115,000 psi, respectively.
b. Grade K: 90,000 psi to 115,000 psi. These rods are made with 1.65 to 2.00% nickel alloy, therefore, it is more expensive than Grade C but has improved corrosion-related properties.

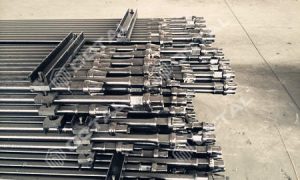

c. API 11B Grade D sucker rod tensile strength minimum 115,000 psi and maximum 140,000 psi. Grade D covers three types of material: Carbon steel, alloy steel, and special-alloy steel.

Mechanical property confirmation is normally closed on the MTR for the specific heat/lot shipped, including chemistry and tensile range by grade. For procurement clarity, grade naming (C/K/D and higher-strength variants) should remain consistent across marking, MTR, and packing list so that field string design and acceptance checks stay aligned.

Corrosion Protection

Sucker rods are susceptible to corrosion due to exposure to well fluids and harsh downhole conditions. To protect against corrosion, the rods are often coated with protective coatings or treated with corrosion inhibitors.

Corrosion in rod strings is commonly driven by CO2 corrosion, H2S-related mechanisms, high-salinity produced water, and microbiological activity, with couplings and upset ends often becoming early hotspots due to crevices and local stress. Corrosion protection is therefore evaluated as a system—material/grade chemistry, surface treatment or coating integrity, and how well documentation and marking preserve lot segregation throughout storage and handling.

Maintenance and Inspection

Regular maintenance and inspection of sucker rods are essential to identify any signs of wear, corrosion, or damage. Damaged rods should be replaced promptly to ensure safe and efficient well operations.

Receiving Inspection Highlights (typical acceptance focus)

• Marking and traceability: rod/coupling ID matches heat/lot on MTR and packing list.
• Dimensional checks: OD, length, straightness, and upset geometry consistency by lot.
• Thread and coupling fit: gauge verification and visual surface condition at threads and shoulders.
• Surface condition: coating continuity, handling damage, and cap protection integrity.

This sucker rod manufacturer workflow is built around thread gauging, dimensional checks, and lot-based documentation mapping.

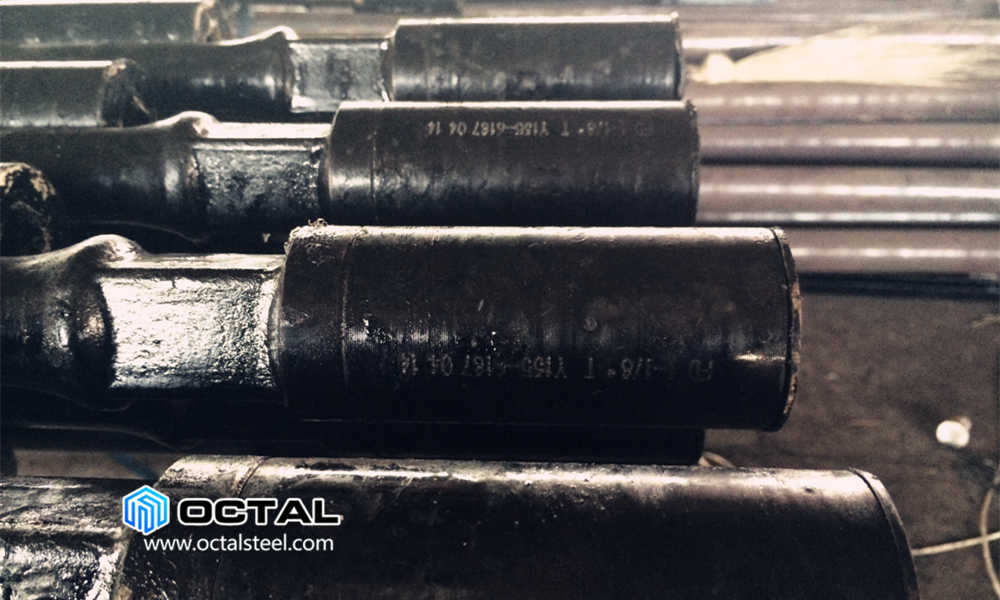

Sucker Rods Coupling Types

with the connection T coupling or reduced diameter coupling. sucker rod connect each other and extended to an under ground piston of the reserve oil, by the reciprocating motion to pump the oil.
Overall, sucker rods play a crucial role in the oil and gas industry, providing the mechanical power necessary for the extraction of oil and gas from underground reservoirs.

Couplings are frequently the first location where combined corrosion, wear, and fatigue interact, because they see localized stress and crevice exposure around threads. Matching coupling type and material to the rod grade, plus gauge-controlled thread compatibility, is typically treated as a single acceptance package rather than separate line items.

Drive Rod

Drive rods transmit power in drilling and drive systems and are built for higher torsional/rotational loads, both downhole and on the surface. They generally come in bigger sizes than sucker rods.

• Sucker rods: typical outer diameters from about 1/4″ to 1-1/2″ (light-duty) and up to ~2″ for standard production rods. Heavier grades exist for high load.
• Drive rods: outer diameters mainly from 1″ to 4″, chosen by load, torque, and equipment. Larger diameters are used for heavy-duty drilling or surface drive.

Drive rods are evaluated differently from sucker rods because torsional capacity and rotational loading become dominant. Keeping drive-rod requirements separated from sucker-rod purchase specs helps avoid misapplication where tensile/fatigue design should remain the primary control.

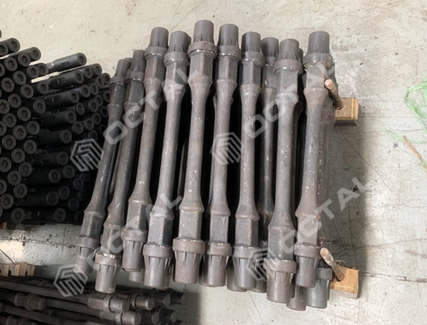

Pony Rod

• A pony rod is a short sucker rod, usually under 10 ft in length.
• Its application is similar to sucker rods for oil pumping, providing short pieces to complete the oil well system or drilling context where a short rod is needed.
• It is considered an auxiliary rod used in the well pumping process, serving as a linkage in rod strings or surface equipment.
• Materials are similar to sucker rods (carbon or alloy steel).

Pony rods are commonly purchased as a practical inventory item because they allow string-length adjustments and targeted replacement at high-wear sections without changing the full rod-string configuration. Traceability and connection compatibility remain the same as full-length rods to keep make-up behavior consistent.

Pony rod is short piece of sucker rod.

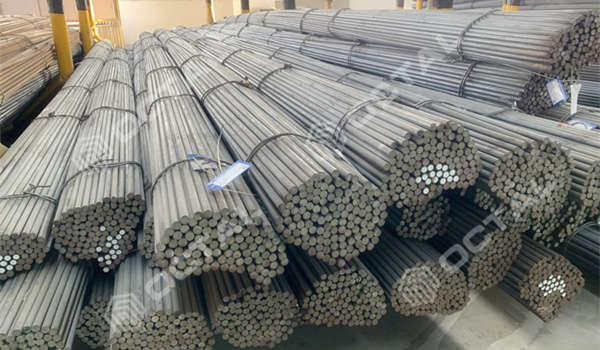

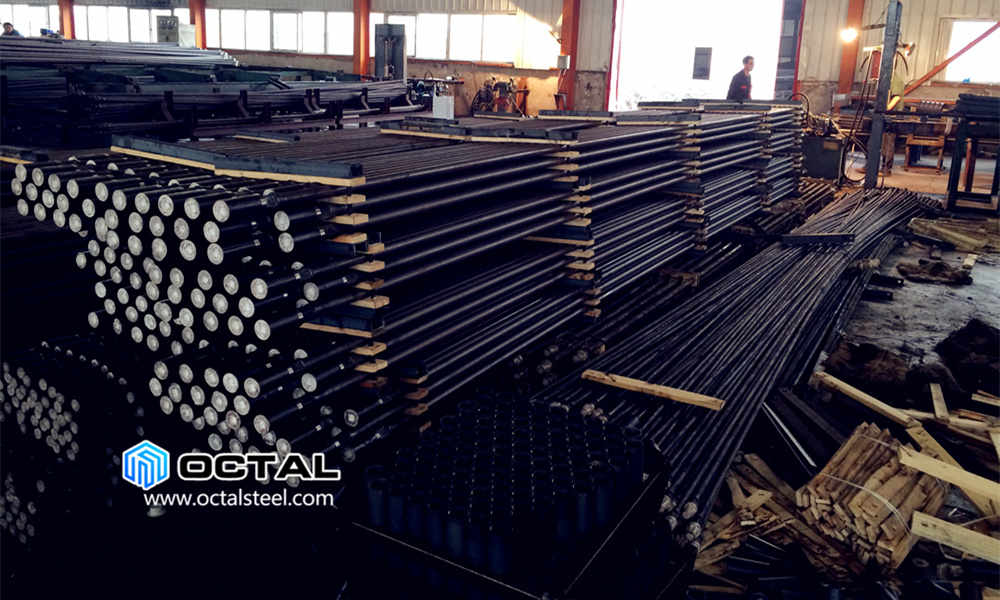

Sucker Rod Raw Material

Sucker rod is making from steel rod by forging and threading.

Raw material control is the start of acceptance: heat identification on the bar, chemistry/mechanical verification, and lot segregation car
